Model Description


BE THERE. WHEREVER THERE IS

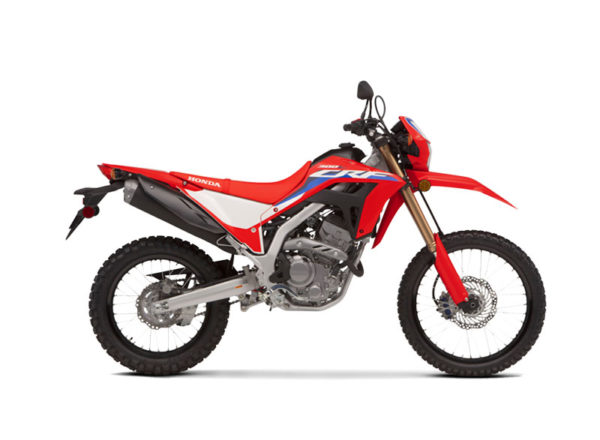

We’ve reborn the CRF300L with a lightweight chassis, slimmer bodywork and boosted power and torque from the engine. But, while the specification has improved, the brilliant dual-purpose formula stays the same. The qualities that make it so good off–road – slim proportions, peppy throttle response, agile steering and supple suspension – also make it brilliant around town. The CRF300L enlivens any weekday commute with an enjoyable, satisfying all-round performance. And, come the weekend, this is a motorcycle born to explore.

LIGHTER. MORE POWERFUL. EVEN MORE FUN.

First, let’s do the numbers.
The CRF300L is 4kg lighter, thanks to its new frame and tapered aluminium swingarm, which you’ll notice the moment you change direction, on or off-road. The larger capacity single-cylinder engine produces an extra 1.9kW power with 4Nm more torque – which you’ll feel when you tap open the throttle – and now features an Assist/Slipper Clutch. Ground clearance is increased, and the riding position is tailored for complete control, with a slim fuel tank and seat, contoured for comfort and easy ground reach. A Gear Position indicator for the dash and an aggressive new headlight design are the smart finishing touches.

Model Specification


  • Engine

    Engine Type

    Liquid-cooled, Single, DOHC

    Engine Displacement

    286cc

    Bore and Stroke

    76mm x 63mm

    Carburation

    PGM-FI electronic fuel injection

    Compression Ratio

    10.7:1

    Ignition

    Starter

    Electric

    Oil Capacity

    1.8 L

  • Performance

    Max Torque

    26.6Nm/6500rpm

    Max Power

    20.1kW/8500rpm

  • Dimensions

    Length x Width x Height

    Wheelbase

    1455mm

    Ground Clearance

    285mm

    Seat Height

    880mm

    Fuel Capacity

    7.8 L

    Tyres Front

    80/100-21M/C 51P

    Tyres Rear

    120/80-18M/C 62P

    Brakes Front

    256 mm x 3.5mm disc with two piston caliper

    Brakes Rear

    220 mm x 4.5mm disc with single piston caliper

    Dimensions

    Kerb Weight

    142kg

    Dry Weight

  • Wheels

    Suspension Front

    43mm Telescopic Upsidedown

    Suspension Rear

    Prolink

    Wheels Front

    Aluminium spoke

    Wheels Rear

    Aluminium spoke

  • Transmission

    Transmission

    6-speed

    Gearbox

    Final Drive

    Chain

    Transmission Type

    6-speed

  • Frame

    Frame Type

    Steel Semi-Double Cradle
