Model Description


REMEMBER THE LAST TIME

You grinned in your helmet?
When you first see a Monkey, you’ll smile. When you first ride a Monkey, you’re guaranteed to be wearing the biggest grin inside your helmet. Sure, it’s small enough to pack away behind a camper van, and wriggle through gaps in traffic nothing else will get through. But, really what the Monkey’s all about is the sheer, basic joy of riding. And we think there’s nothing wrong with that.

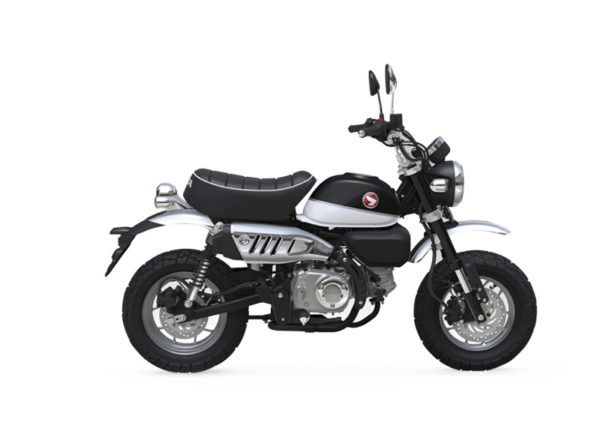

THIS IS MONKEY

The Monkey has style all if its own. And character like nothing else. Chromed high-rise handlebars, plus frame, swingarm and shock absorbers painted the same colour as the peanut fuel tank–and the high-level mudguards–all draw attention. As do the chunky block-section tyres. But underneath it’s built strong, with a dependable, economical air-cooled 125cc engine bolted into a sturdy chassis that features IMU-controlled ABS braking. It’s also small and light, just 107kg, with a comfy seat set 775mm from the ground. So much more than a toy. No less of a motorcycle. It’s a Monkey.

Model Specification


  • Engine

    Engine Type

    Air-cooled SOHC 4-stroke 2-valve

    Engine Displacement

    125cc

    Bore and Stroke

    52.4 x 57.9mm

    Carburation

    PGM-FI electronic fuel injection

    Compression Ratio

    9.3:1

    Ignition

    Starter

    Oil Capacity

    Upper 1.1 litres; lower 0.9 litres

  • Performance

    Max Torque

    11Nm @ 5,250rpm

    Max Power

    6.9kW @ 7,000rpm

  • Dimensions

    Length x Width x Height

    1,710 x 755 x 1,029mm

    Wheelbase

    1,155mm

    Ground Clearance

    160mm

    Seat Height

    776mm

    Fuel Capacity

    5.6 litres

    Tyres Front

    120/80-12 65J

    Tyres Rear

    130/80-12 69J

    Brakes Front

    Single 220 mm hydraulic disc with IMU-based ABS

    Brakes Rear

    Single 190mm hydraulic disc

    Dimensions

    Kerb Weight

    107kg

    Dry Weight

  • Wheels

    Suspension Front

    USD fork, 100mm axle travel

    Suspension Rear

    Twin shock, 104mm axle travel

    Wheels Front

    10-spoke cast aluminium

    Wheels Rear

    10-spoke cast aluminium

  • Transmission

    Transmission

    4 speed

    Gearbox

    4 speed

    Final Drive

    Chain

    Transmission Type

    4 speed

  • Frame

    Frame Type

    Steel backbone frame
