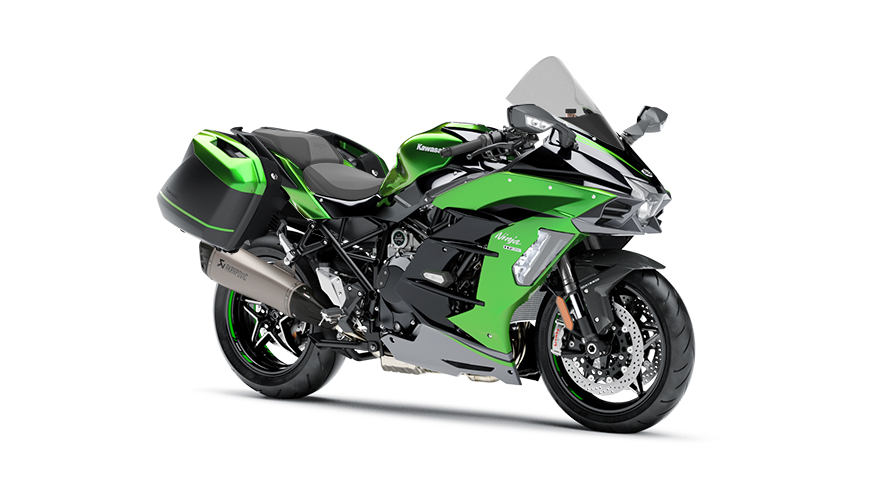

2020 Ninja H2 SX SE + Performance Tourer

£23,649.00

Return to Model Categories

2020 Ninja H2 SX SE + Performance Tourer Promotions


Model Description


Complementing the Ninja H2 SX and Ninja H2 SX SE, the all-new Ninja H2 SX SE+ boasts advanced electronic suspension and a host of other high level equipment making it the most advanced model of the line-up and the third variation of the H2 SX concept. Go further, faster on our most capable Sports Tourer yet. Ninja H2 SX SE +
SUPERCHARGE YOUR JOURNEY.

Colour Options UK – Emerald Blazed Green / Metallic Graphite Grey / Metallic Diablo Black

Model Specification


  • Engine

    Engine Type

    Liquid-cooled, 4-stroke In-Line Four with Supercharger

    Displacement

    998 cm3

    Bore x stroke

    76 x 55 mm

    Compression ratio

    11.2:1

    Valve/Induction system

    DOHC, 16 valves

    Fuel system

    Fuel injection: O 40 mm x 4 with dual injection

    Ignition

    Digital

    Starting

    Electric

    Lubrication

    Forced lubrication, wet sump with oil cooler

    CO2 Emission

  • Performance

    Maximum Power

    Maximum power

    147.1 kW {200 PS} / 11,000 rpm

    Maximum power with RAM Air

    Maximum torque

    137.3 N•m {14 kgf•m} / 9,500 rpm

  • Transmission

    Transmission

    6-speed, dog-ring

    Final Drive

    Sealed chain

    Clutch

    Wet multi-disc, manual

  • Frame

    Frame type

    Trellis, high-tensile steel with Swingarm Mounting Plate

    Rake/Trail

    103 mm

    Wheel travel

    Front - 120 mm, Rear - 139 mm

    Steering angle

    left / right

    Seat Height

    835mm

    Curb Mass

    262 kg

    Ground Clearance

  • Dimensions

    Dimensions (L x W x H)

    2,135 x 775 x 1,260 mm

    Wheelbase

    1,480 mm

  • Suspension

    Suspension

    front

    rear

    Suspension front

    43 mm inverted fork with KECS-controlled rebound and compression damping, manual spring preload adjustability and top-out springs

    Suspension rear

    Uni-Trak, BFRC lite shock, KECS-controlled compression damping, rebound damping and spring preload adjustability

  • Brakes

    Brakes

    Front - Dual semi-floating 320 mm discs. Caliper: Dual radial-mount, Brembo Stylema monobloc, opposed 4-piston Rear - Single 250 mm disc. Caliper: 2-piston
