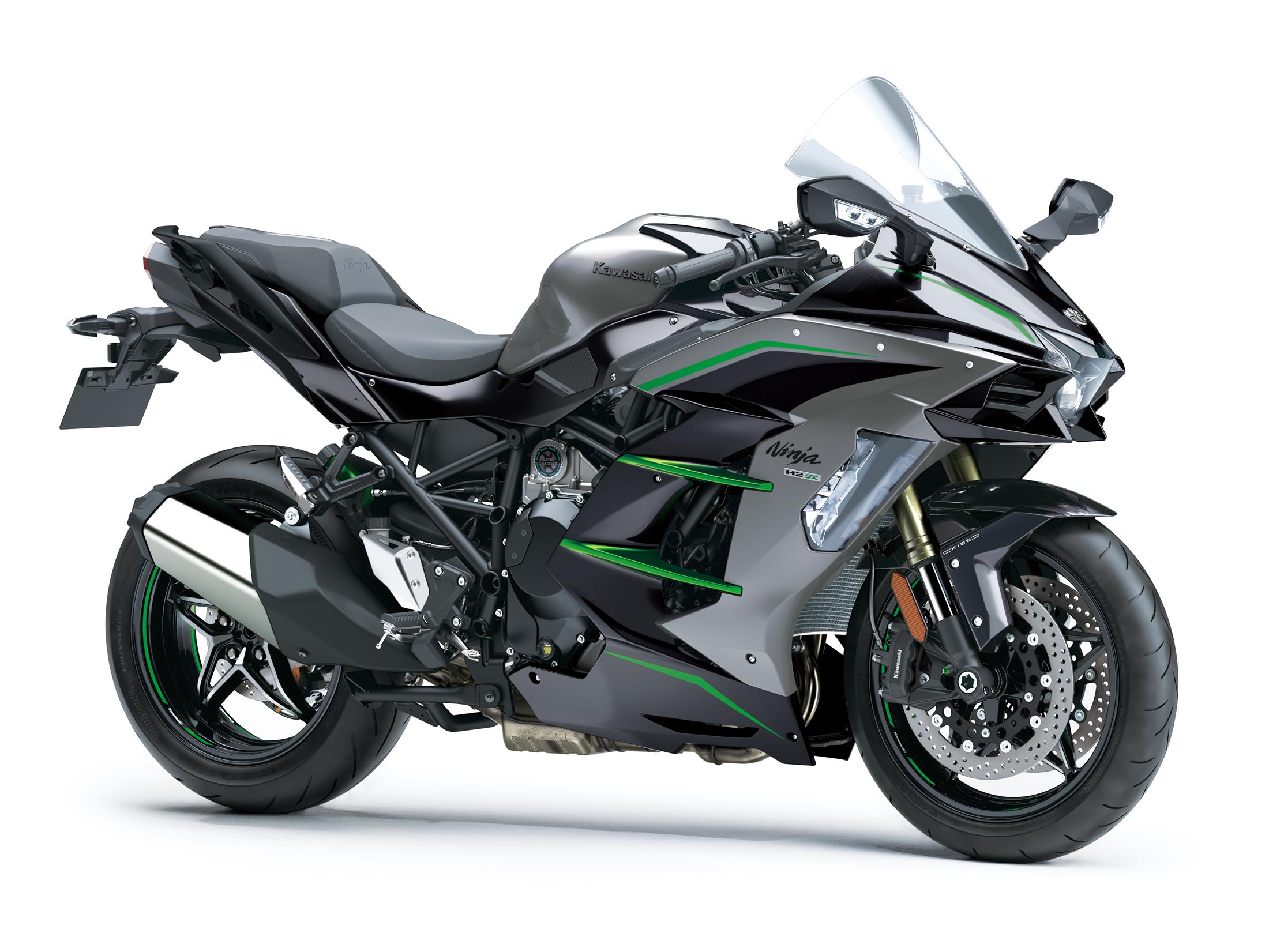

2020 Ninja H2 SX SE

£19,099.00

Make an Enquiry Test Ride Enquiry Part Exchange Enquiry
Return to Model Categories

2020 Ninja H2 SX SE Promotions

Find out more

Model Description


Leave everything you thought you knew about Sports Touring behind with the Supercharged Ninja
H2 SX and Ninja H2 SX SE. Surge across continents, along autobahns and through mountain
passes. Go further faster on our most capable Sports Tourer yet. Ninja H2 SX –
SUPERCHARGE YOUR JOURNEY.

Model Specification


  • Engine

    Engine Type

    Liquid-cooled, 4-stroke In-Line Four with Supercharger

    Displacement

    998 cm3

    Bore x stroke

    76 x 55 mm

    Compression ratio

    11.2:1

    Valve/Induction system

    DOHC, 16 valves

    Fuel system

    Fuel injection: Ø 40 mm x 4 with dual injection

    Ignition

    Digital

    Starting

    Electric

    Lubrication

    Forced lubrication, wet sump with oil cooler

    CO2 Emission

  • Performance

    Maximum Power

    Maximum power

    147.1 kW {200 PS} / 11,000 rpm

    Maximum power with RAM Air

    Maximum torque

    137.3 N•m {14 kgf•m} / 9,500 rpm

  • Transmission

    Transmission

    6-speed, dog-ring

    Final Drive

    Sealed chain

    Clutch

    Wet multi-disc, manual

  • Frame

    Frame type

    Trellis, high-tensile steel with Swingarm Mounting Plate

    Rake/Trail

    Wheel travel

    Front - 120 mm, Rear - 139 mm

    Steering angle

    left / right

    Seat Height

    835mm

    Curb Mass

    256kg

    Ground Clearance

  • Dimensions

    Dimensions (L x W x H)

    2,135 x 775 x 1,205 mm

    Wheelbase

    1,480 mm

  • Suspension

    Suspension

    front

    43 mm inverted fork with rebound and compression damping, spring preload adjustability and top-out springs

    rear

    New Uni-Trak, gas-charged shock with piggyback reservoir, compression damping, rebound damping, remote spring preload adjustability and top-out spring

    Suspension front

    Suspension rear

  • Brakes

    Brakes

    Front - Dual semi-floating 320 mm discs. Caliper: Dual radial-mount, monobloc, opposed 4-piston. Rear - Single 250 mm disc. Caliper: 2-piston
