Model Description


THRILL SEEKER

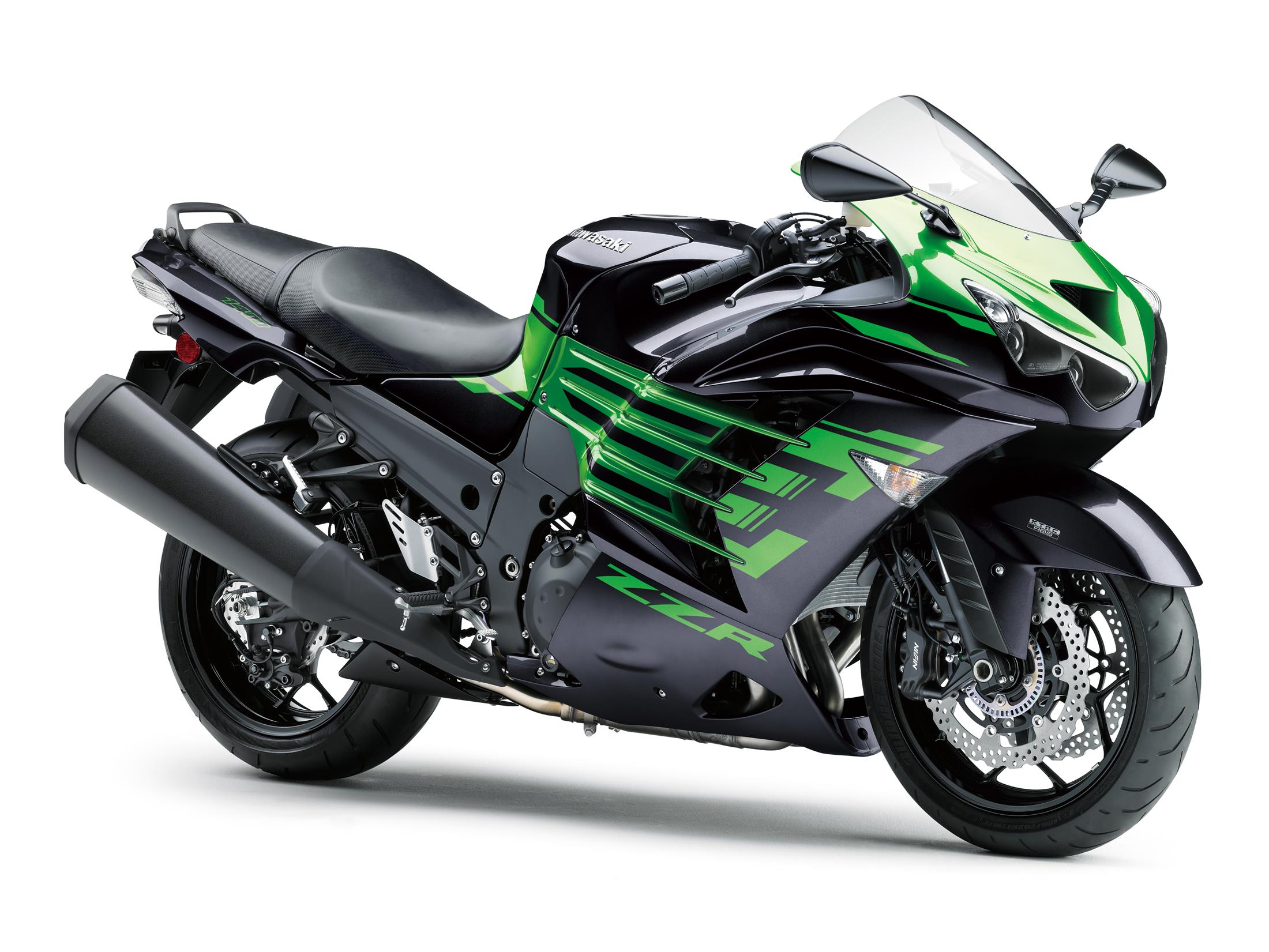

The ZZR1400 matches Kawasaki’s passion for engineering with your desire for ultimate
performance. Satisfy the thrill seeker within you with dominating acceleration mated to
sophisticated rider aids including traction control, ABS braking and power mode selection.

Colour options UK – Metallic Diablo Black / Golden Blazed Green

Model Specification


  • Engine

    Engine Type

    Liquid-cooled, 4-stroke In-Line Four

    Displacement

    1,441 cm3

    Bore x stroke

    84.0 x 65.0 mm

    Compression ratio

    12.3:1

    Valve/Induction system

    DOHC, 16 valves

    Fuel system

    Fuel injection: O 44 mm x 4 (Mikuni)

    Ignition

    Digital

    Starting

    Electric

    Lubrication

    Forced lubrication, wet sump with oil cooler

    CO2 Emission

  • Performance

    Maximum Power

    147.2 kW {200 PS} / 10,000 rpm

    Maximum power

    Maximum power with RAM Air

    154.5 kW {210 PS} / 10,000 rpm

    Maximum torque

    158.2 N•m {16.1 kgf•m} / 7,500 rpm

  • Transmission

    Transmission

    6-speed

    Final Drive

    Sealed chain

    Clutch

    Wet multi-disc, manual

  • Frame

    Frame type

    Monocoque, pressed-aluminium

    Rake/Trail

    93 mm

    Wheel travel

    FRONT: 117 mm REAR: 124 mm

    Steering angle

    31 / 31

    left / right

    Seat Height

    800mm

    Curb Mass

    269kg

    Ground Clearance

  • Dimensions

    Dimensions (L x W x H)

    2,170 mm x 770 mm x 1,170 mm

    Wheelbase

    1,480 mm

  • Suspension

    Suspension

    front

    rear

    Suspension front

    Type: 43 mm inverted fork with top-out springs Compression damping: 18-way Rebound damping: 15-way Spring preload: Fully adjustable

    Suspension rear

    Type: Bottom-Link Uni-Trak with gas-charged shock Compression damping: Stepless Rebound damping: Stepless Spring preload: Fully adjustable

  • Brakes

    Brakes

    FRONT: Dual semi-floating 310 mm petal discs. Caliper: Dual radial-mount, opposed 4-piston, 4-pad REAR: Single 250 mm petal disc. Caliper: Opposed, twin-piston
