Model Description


BEST OF BOTH WORLDS

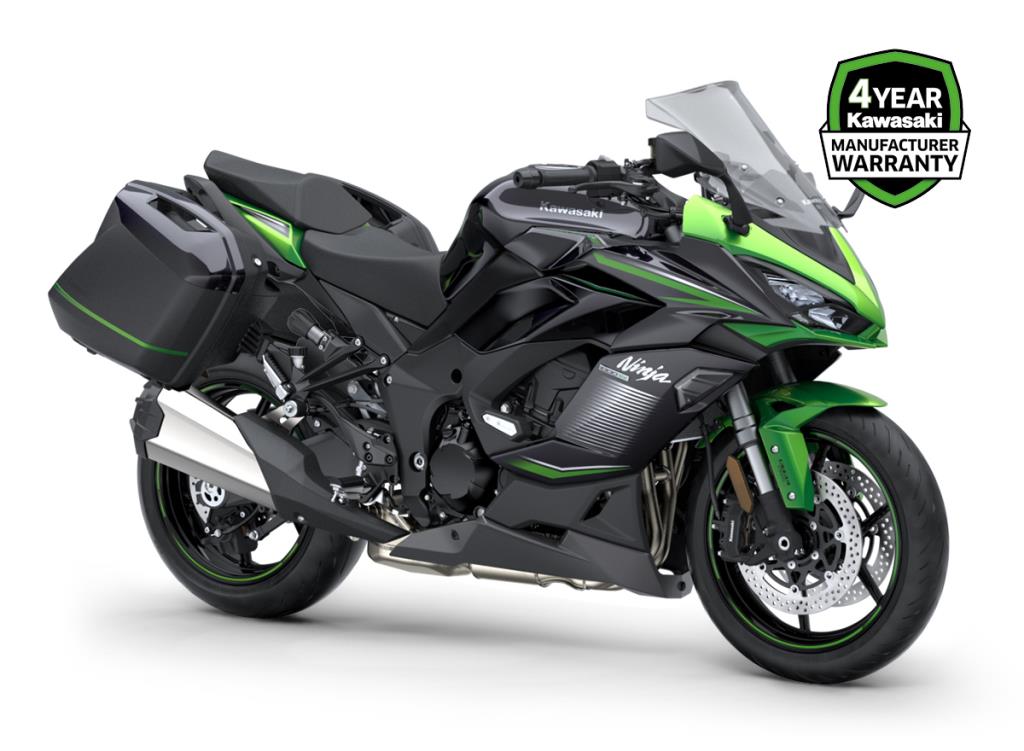

The new Ninja 1000SX marks the fourth generation of a successful sport touring platform. The Ninja 1000SX Tourer Edition adds a 2x 28L integrated pannier system that is colour-matched to the body of the bike and can be conveniently locked with the ignition key. And a larger windscreen that is fitted for even more comfort.

AVAILABLE IN OCTOBER 2021

Colour options UK

Metallic Diablo Black / Pearl Robotic White – £12,499

Emerald Blazed Green / Metallic Diablo Black / Metallic Graphite Grey – £12,699

Metallic Matte Graphenesteel Grey / Metallic Diablo Black – £12,699

Model Specification


  • Engine

    Engine Type

    Liquid-cooled, 4-stroke In-Line Four

    Displacement

    1,043 cm3

    Bore x stroke

    77.0 x 56.0 mm

    Compression ratio

    11.8:1

    Valve/Induction system

    DOHC, 16 valves

    Fuel system

    Fuel injection: O 38 mm

    Ignition

    Digital

    Starting

    Electric

    Lubrication

    Forced lubrication, wet sump

    CO2 Emission

  • Performance

    Maximum Power

    Maximum power

    104.5 kW {142 PS} / 10,000 rpm

    Maximum power with RAM Air

    Maximum torque

    111 N.m {11.3 kgf.m} / 8,000 rpm

  • Transmission

    Transmission

    6-speed

    Final Drive

    Sealed chain

    Clutch

    Wet multi-disc, manual

  • Frame

    Frame type

    Twin-tube, aluminium

    Rake/Trail

    Wheel travel

    Front - 120 mm, Rear - 144 mm

    Steering angle

    left / right

    Seat Height

    835mm

    Curb Mass

    235kg

    Ground Clearance

  • Dimensions

    Dimensions (L x W x H)

    2,100 x 825 x 1,190 (1,225 mm high position screen) mm

    Wheelbase

    1,440 mm

  • Suspension

    Suspension

    front

    rear

    Suspension front

    41 mm inverted fork with stepless compression and rebound damping and spring preload adjustability

    Suspension rear

    Horizontal Back-link, gas-charged rear shock with rebound damping and spring preload adjustability

  • Brakes

    Brakes

    FRONT - Dual semi-floating 300 mm discs. Caliper: Dual radial-mount, monobloc, opposed 4-piston REAR - Single 250 mm disc. Caliper Single-piston
