Model Description


YOUR WAY

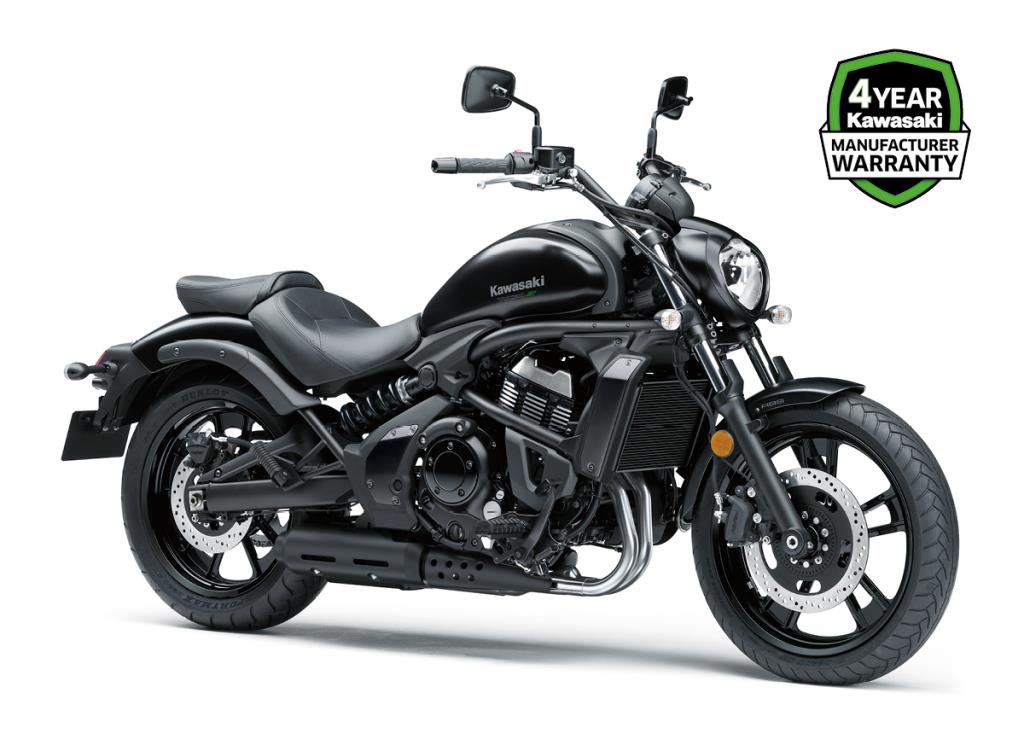

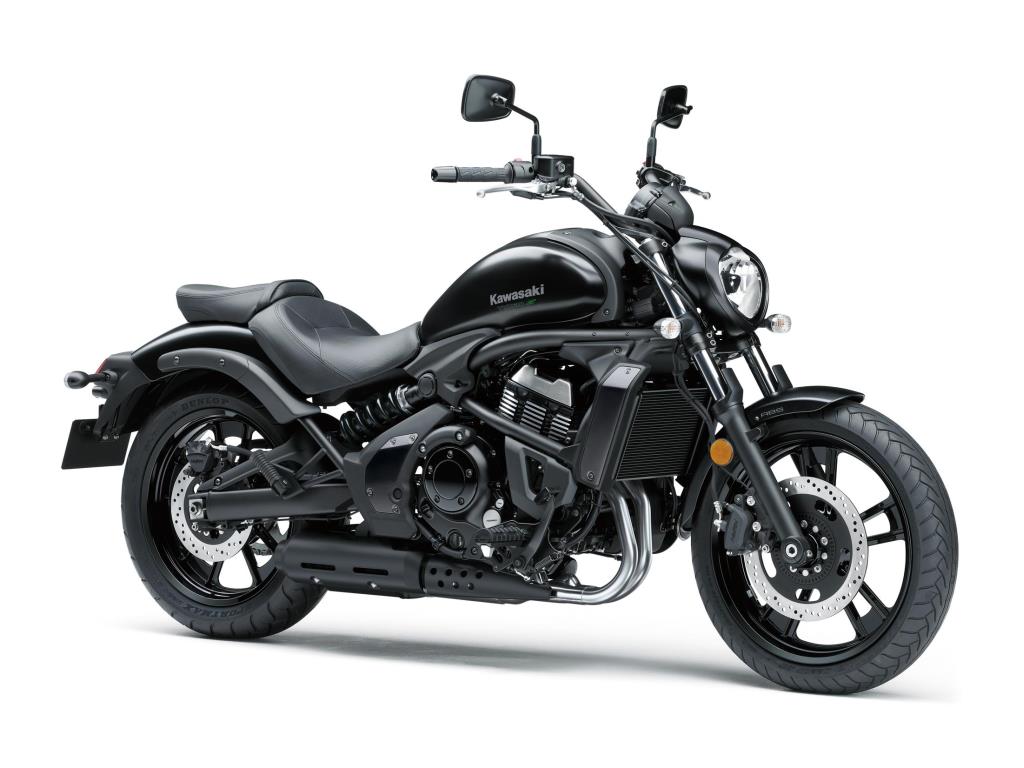

Vulcan S, not your average cruiser. Standing apart, with its Parallel Twin engine, unique frame and suspension layout and designed for independent minded riders, Vulcan S does not require the rider to conform to some “herd-mentality”, outdated fashion or lifestyle. Accessible in all senses of the word, the accommodating new Vulcan S encourages you to go Your Way!

AVAILABLE IN OCTOBER 2021

Colour Options:

Metallic Flat Spark Black – £7,249

Candy Crimson Red – £7,249

Metallic Matte Graphenesteel Grey / Metallic Matte Graphite Grey – £7,449

Model Specification


  • Engine

    Engine Type

    Liquid-cooled, 4-stroke Parallel Twin

    Displacement

    649 cm3

    Bore x stroke

    83.0 x 60.0 mm

    Compression ratio

    10.8:1

    Valve/Induction system

    DOHC, 8 valves

    Fuel system

    Fuel injection: 38 mm x 2 with sub-throttles

    Ignition

    Digital

    Starting

    Electric

    Lubrication

    Forced lubrication, semi-dry sump

    CO2 Emission

    Battery Type

    Nominal Voltage

    Total Nominal Capacity

  • Performance

    Maximum Power

    45.0 kW {61 PS} / 7,500rpm

    Maximum power

    45 kW {61 PS} / 7,500 rpm

    Maximum power with RAM Air

    Maximum torque

    63.0 N•m {6.4 kgf•m} / 6,600 rpm

    Max Speed

    Electric consumption

    Range

    Charging time

    Rated power

  • Transmission

    Transmission

    6-speed, return

    Final Drive

    Sealed chain

    Clutch

    Wet multi-disc, manual

  • Frame

    Frame type

    Tubular diamond, high-tensile steel

    Rake/Trail

    120 mm

    Wheel travel

    Front: 130 mm Rear: 80 mm

    Steering angle

    35o / 35o

    left / right

    Seat Height

    705mm

    Curb Mass

    229kg

    Ground Clearance

  • Dimensions

    Dimensions (L x W x H)

    2,310 x 880 x 1,100 mm

    Wheelbase

    1,575 mm

    Total battery weight

  • Suspension

    Suspension

    front

    rear

    Suspension front

    41 mm telescopic fork

    Suspension rear

    Horizontal Back-link with 7-way adjustable preload

  • Brakes

    Brakes

    Front: Single 300 mm disc. Caliper: Dual-piston Rear: Single 250 mm disc. Caliper: Single-piston
