Model Description


THE HEIGHT OF EXCELLENCE

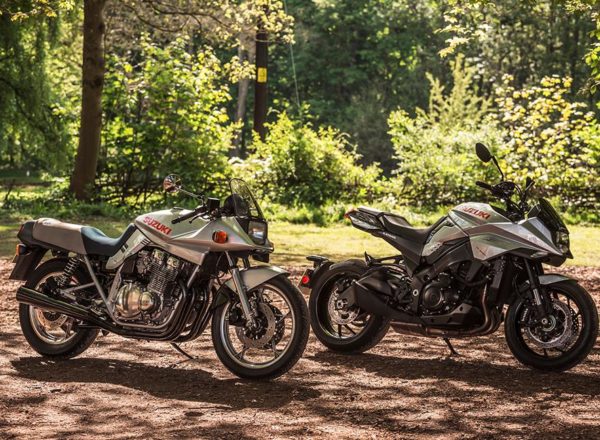

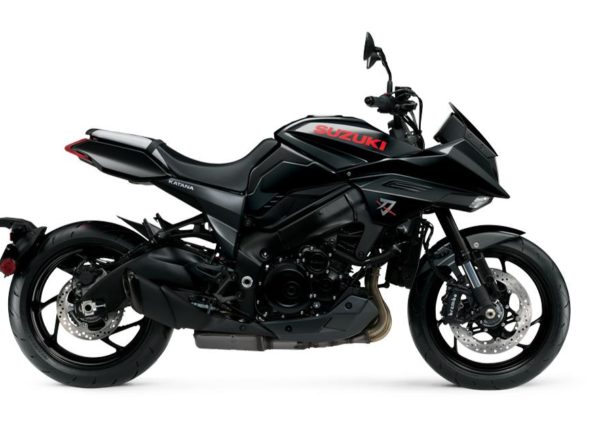

The KATANA symbolises Suzuki’s uncompromising commitment to craftsmanship. Suzuki’s dedication to creating distinctive beauty includes paying due respect to tradition while at the same time aiming to incorporate the latest advances in technology.

Model Specification


  • Engine

    Engine Type

    4-stroke, 4-cylinder, liquid-cooled, DOHC

    Engine Displacement

    Fuel System

    Fuel Injection

    Ignition

    Electronic ignition (transistorised)

    Lubrication

    Wet Sump

    Transmission

    6-speed constant mesh

    Final Drive

    Fuel Capacity

    12.0 L (2.6 UK gallons)

  • Dimensions

    Bore x Stroke

    73.4 x 59.0 (2.89 in x 2.32 in)

    Compression Ratio

    12.2 : 1

    Length

    2130 mm (83.8 in)

    Width

    835 mm (32.9 in)

    Height

    1110 mm (43.7 in)

    Wheelbase

    1460 mm (57.5 in)

    Seat Height

    825 mm (32.5 in)

  • Frame

    Tyres Front

    120/70ZR17M/C (58W)

    Tyres Rear

    190/50ZR17M/C (73W)

    Kerb Mass

    215 kg (474 lbs)

  • Performance

    Brakes Front

    Disc, twin

    Brakes Rear

    Disc

  • Suspension

    Suspension Front

    Inverted telescopic, coil spring, oil damped

    Suspension Rear

    Link type, coil spring, oil damped
