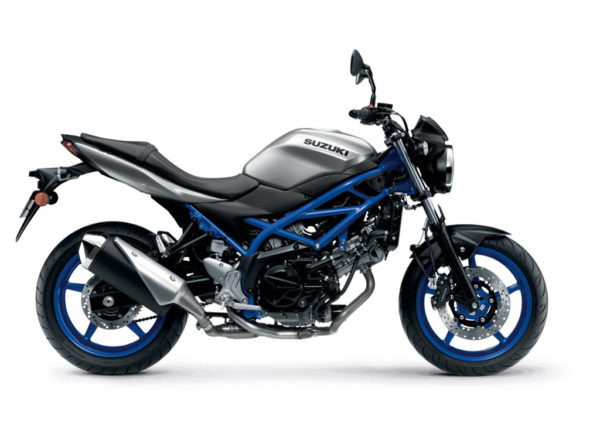

Model Description


RIDER TECHNOLOGY

The SV650 is equipped with some of the most advanced rider technology available, including Low RPM Assist and Suzuki Easy Start System.

Model Specification


  • Engine

    Engine Type

    4-stroke, liquid-cooled, DOHC V-Twin

    Engine Displacement

    Fuel System

    Fuel injection

    Ignition

    Electronic ignition (Transistorised)

    Lubrication

    Wet sump

    Transmission

    6-speed constant mesh

    Final Drive

    Chain

    Fuel Capacity

    14.5 L (2017 model 13.8 L)

  • Dimensions

    Bore x Stroke

    81 mm x 62.6 mm (3.19 in x 2.46 in)

    Compression Ratio

    11.2 : 1

    Length

    2140 mm (84.25 in)

    Width

    760 mm (29.92 in)

    Height

    1090 mm (42.91 in)

    Wheelbase

    1445 mm (56.89 in)

    Seat Height

    785 mm (30.9 in)

  • Frame

    Tyres Front

    120/70ZR17M/C (58W), tubeless

    Tyres Rear

    160/60ZR17M/C (69W), tubeless

    Kerb Mass

    198 kg (2017 model 197 kg)

  • Performance

    Brakes Front

    Disc brake, twin

    Brakes Rear

    Disc brake

  • Suspension

    Suspension Front

    Coil spring, oil damped

    Suspension Rear

    Link type, coil spring, oil damped
